When Industrial-Grade Indicators Matter More Than You Think

As smart manufacturing, the Industrial Internet of Things, and new energy vehicles become the key drivers of industrial transformation, most attention naturally falls on “core components” like chips, sensors, and algorithms. Yet one seemingly trivial but ubiquitous role is often overlooked—the status indicator lamp.

A RUN/ERR LED on a PLC control cabinet, a warning light on a car dashboard, a power indicator on a medical device—they don't perform calculations or execute controls, but every single blink is the “first dialogue” between equipment and human operators. In industrial environments, the failure of a single LED can mean a misjudgment, an unplanned shutdown, or even a safety incident. That’s why more and more equipment manufacturers are rethinking their approach: an indicator lamp is never just “good enough if it lights up.”

XINGLIGHT, with over 13 years of deep expertise in LED packaging, proudly presents its full range of industrial-grade SMD indicator LEDs.

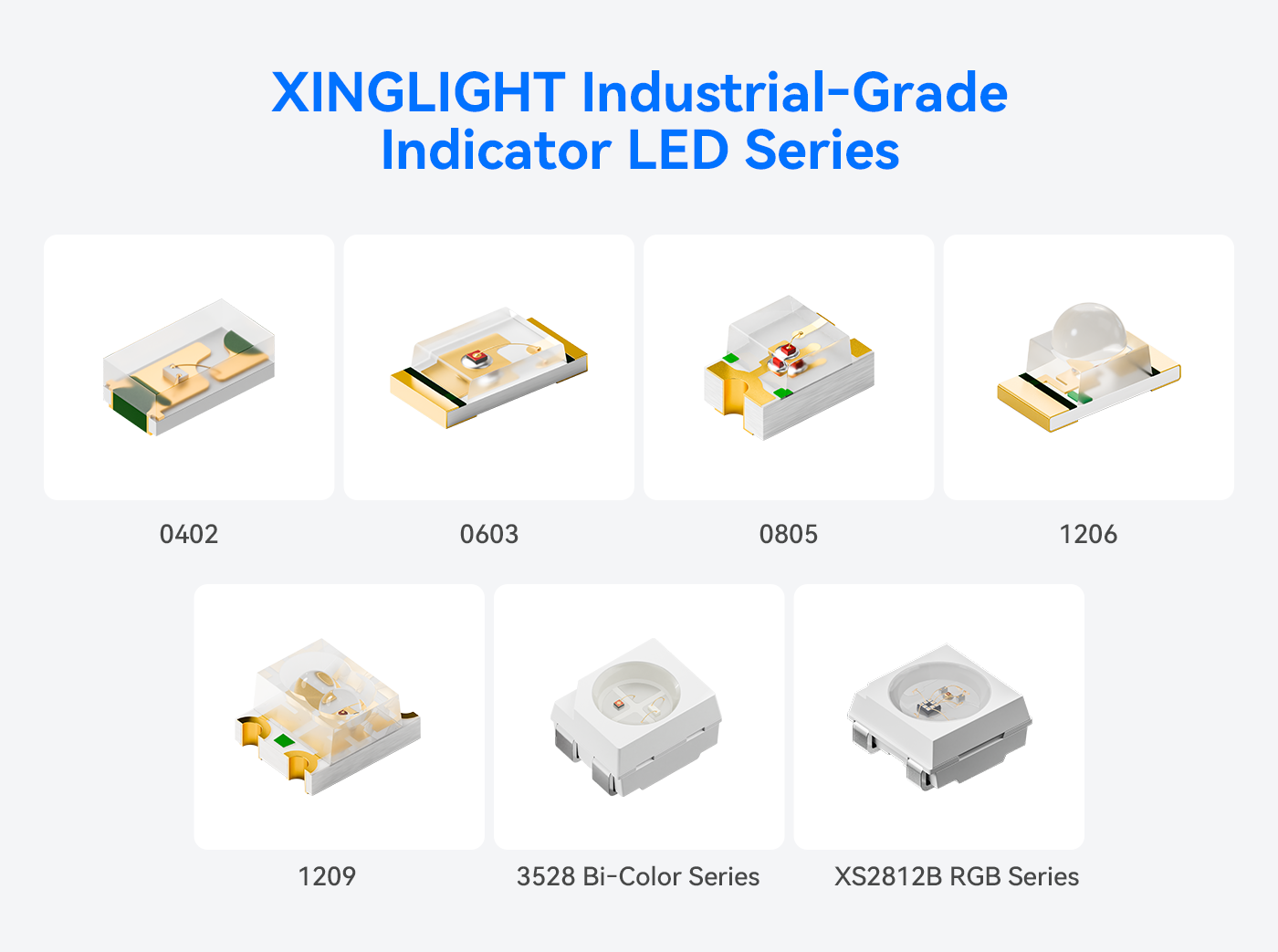

Covering 0402, 0603, 0805, 1206, 1209, 3528 dual‑color, and built‑in XS2812B magic RGB packages—47 models in total, from ultra‑miniature to focused-beam, from single‑color to full‑color programmable, and from standard to high‑brightness gold‑version—we deliver reliable status‑indication solutions for industrial manufacturing, automotive electronics, medical devices, smart home, and beyond.

Static Single‑Color / Dual‑Color Industrial Indicators – Essential for Basic Equipment Status Display

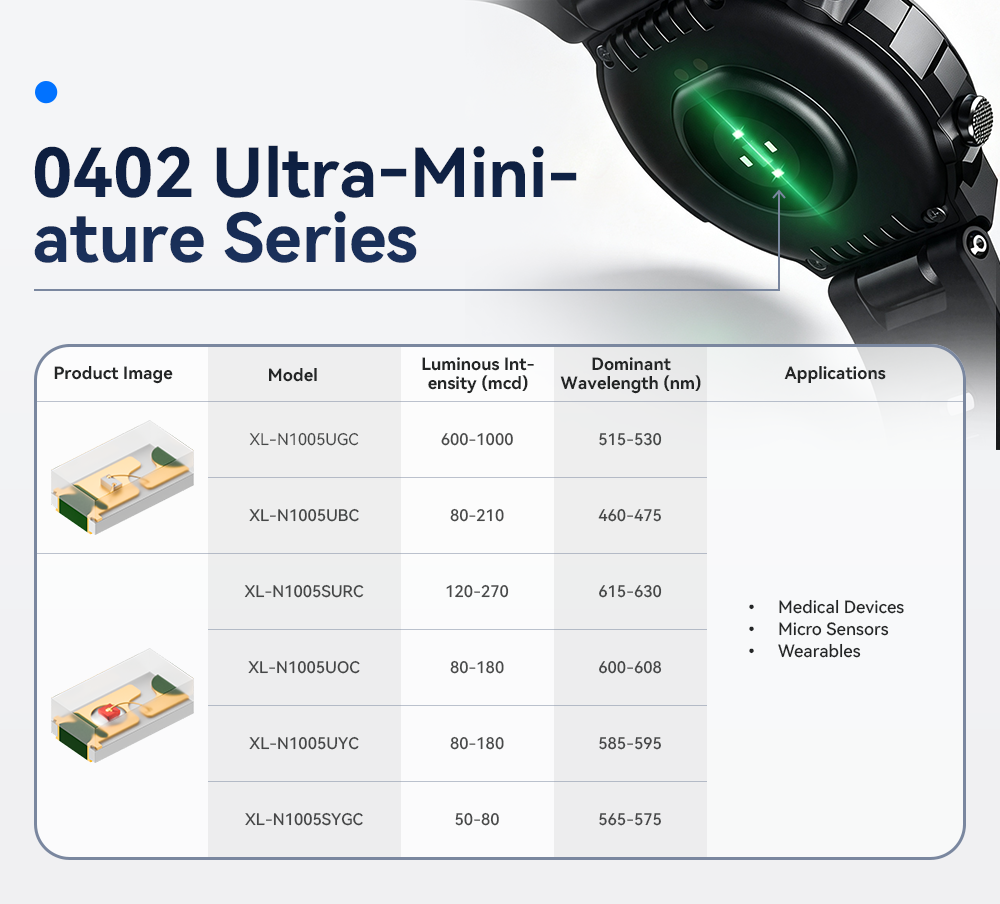

【1】0402 Ultra‑Miniature Series – The Choice for Extreme Space Constraints

With a footprint of just 1.0×0.5×0.4mm, this is the smallest industrial‑grade indicator LED on the market. Don’t let its tiny size fool you—performance is uncompromising: red light typical luminous intensity 120~270 mcd, forward current 25 mA, max power dissipation 75 mW, and a wide 120° viewing angle.

The entire series adopts gold‑bonding process, MSL 3 moisture sensitivity level, and is compatible with SMT automated pick‑and‑place and reflow soldering. Ideal for high‑density PCBs with extremely limited space, wearable medical devices, miniature sensor modules, and more.

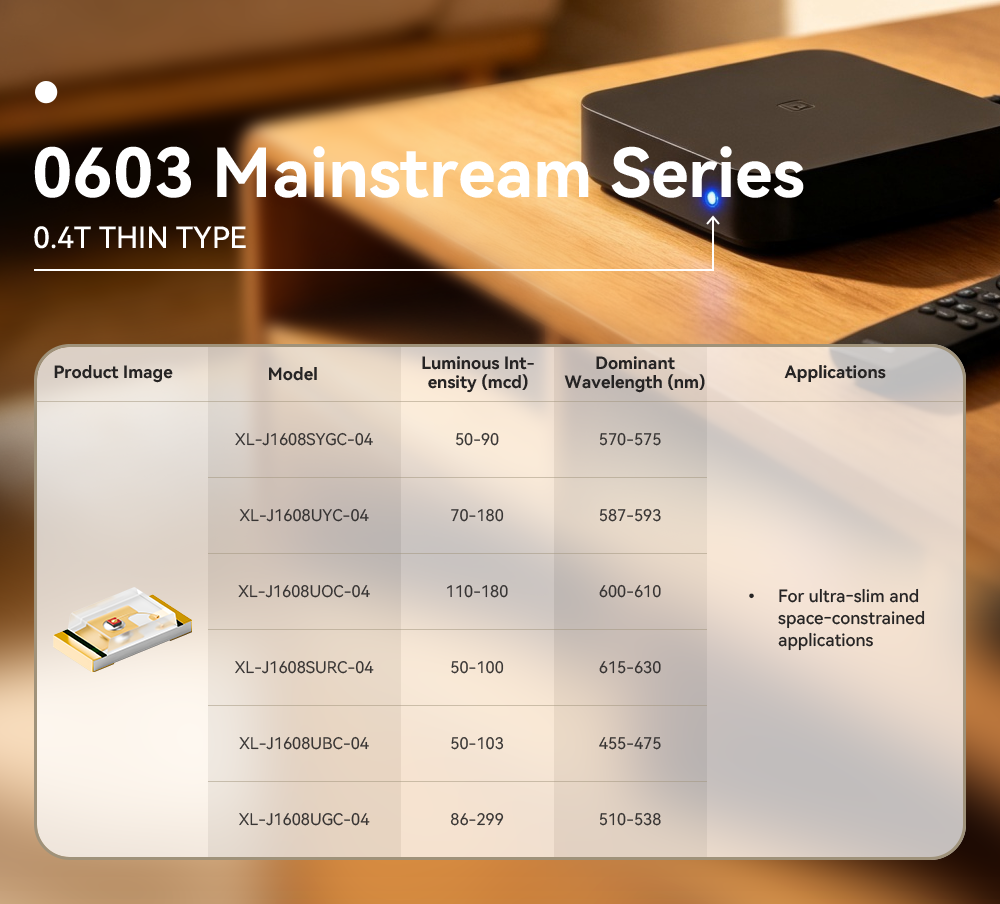

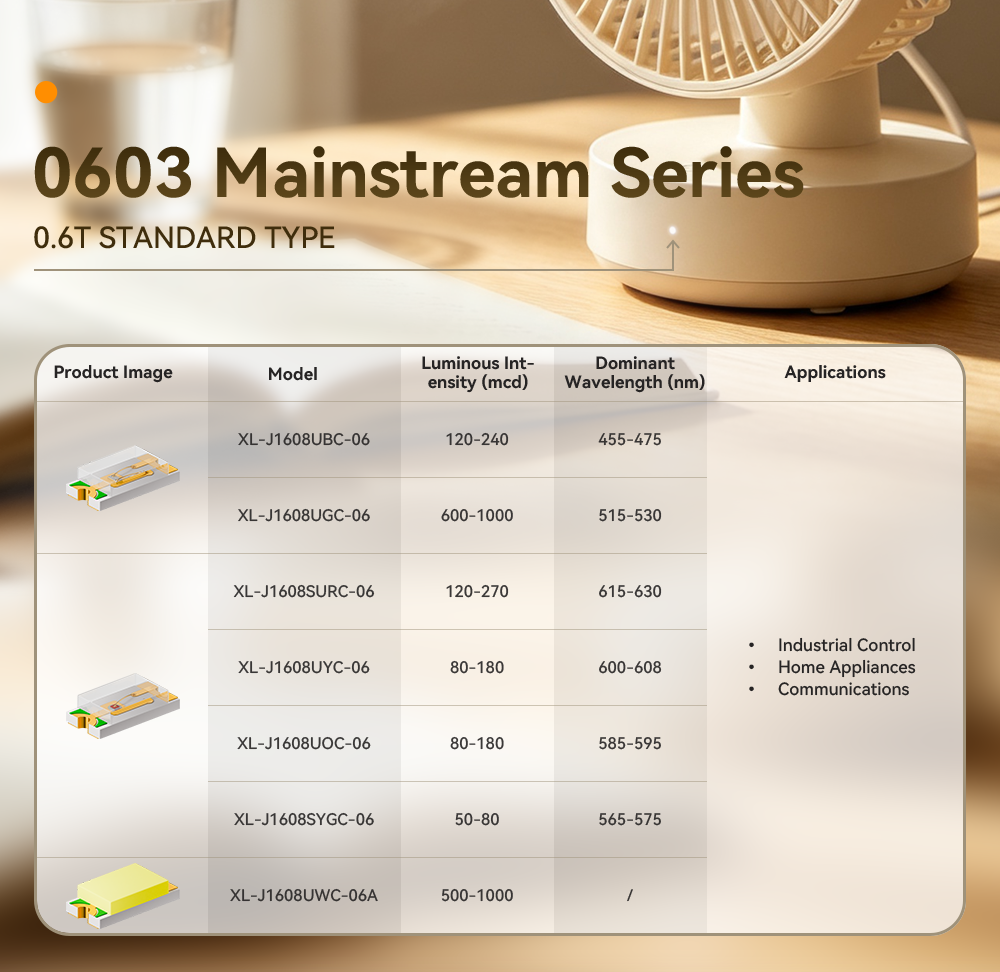

【2】0603 Mainstream Series – The Golden Balance of Cost‑Effectiveness and Performance

The standard 0603 package (1.6×0.8mm) is the most widely used size in industrial control. XingLiang offers two thickness variants: 0.4T for ultra‑thin devices and compact spaces, and 0.6T standard for general industrial boards.

Full color range covers red, regular green, yellow, orange, blue, emerald green, and white. Gold‑bonding process ensures long‑term reliability. Among them, the white XL‑J1608UWC‑06A features yellow diffused epoxy, with luminous intensity of 500~1000 mcd and color temperature around 10,000K. Its cool white light offers strong penetration, making it particularly suitable for power status and running indicators.

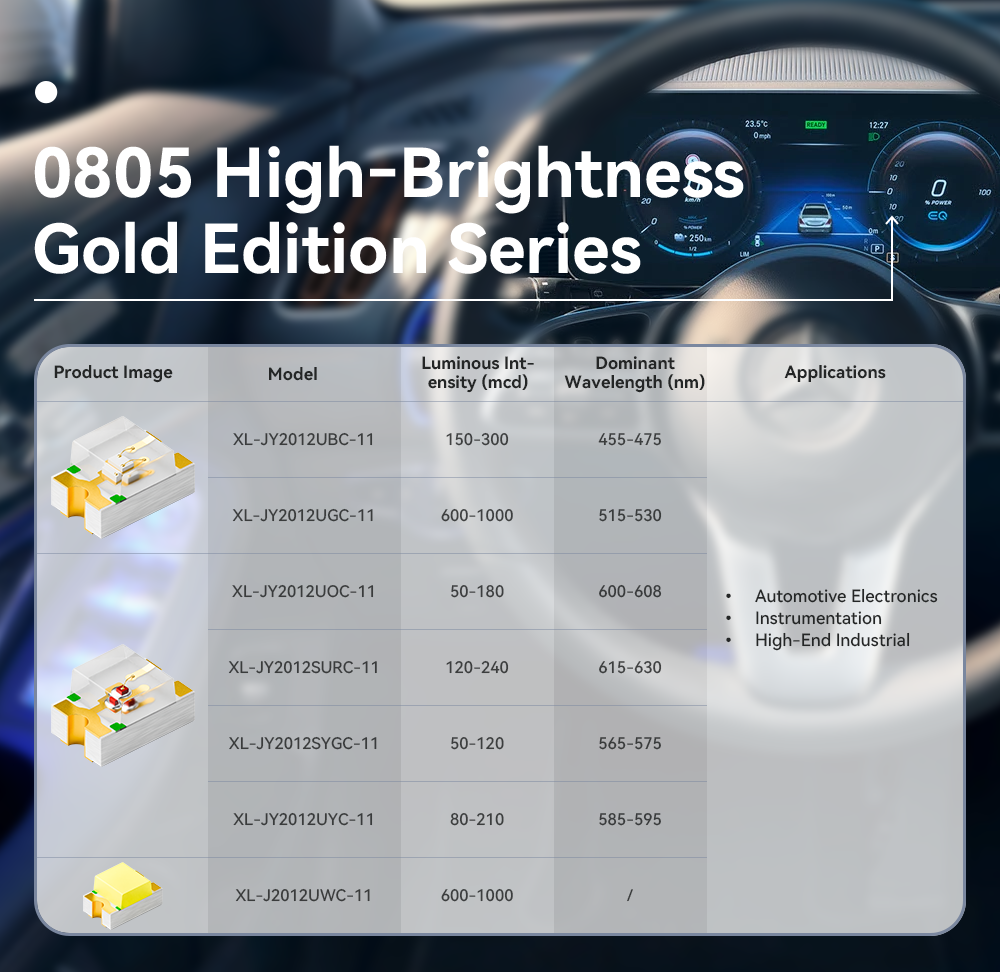

【3】0805 High‑Brightness Gold Edition – The Advanced Choice for High Luminance and Reliability

The 0805 package (2.0×1.2×1.1mm) with 1.1mm thickness and gold/silver‑plated leadframes delivers better heat dissipation and superior brightness. Red typical intensity reaches 120~240 mcd, while the white high‑brightness version (CWZ/KWL) achieves 600~1000 mcd with color temperature covering the 6000K neutral‑white range.

This series is especially suitable for industrial panels, instrumentation, and automotive center consoles that require high visual recognition. The gold‑frame design not only improves thermal efficiency but also enhances sulfur‑resistance, preventing degradation due to silver‑epoxy oxidation even in harsh industrial environments over extended periods.

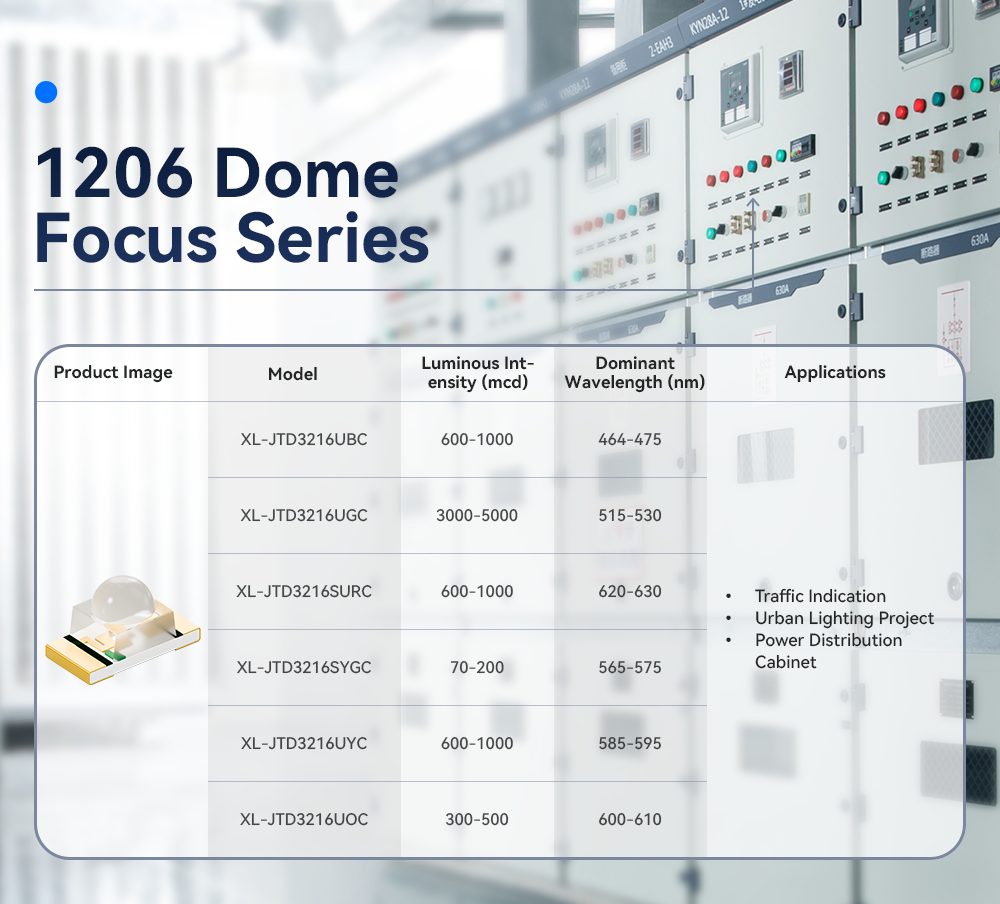

【4】1206 Dome‑Lens Focus Series – A Concentrated Beam for Long‑Distance Indication

Unlike standard SMD LEDs, the dome‑lens series uses a 3.2×1.6×1.85mm spherical lens package that narrows the viewing angle from 120° down to 35°, achieving true spot‑light focus. At the same 20 mA drive current, red luminous intensity reaches 600~1000 mcd—3 to 5 times that of conventional flat chips.

This focused design means high directivity and long‑range visibility—perfect for applications like status indicators on distribution cabinets, outdoor traffic signals, urban lighting projects, and large equipment panels. Even under bright ambient light, the LED status remains clearly discernible.

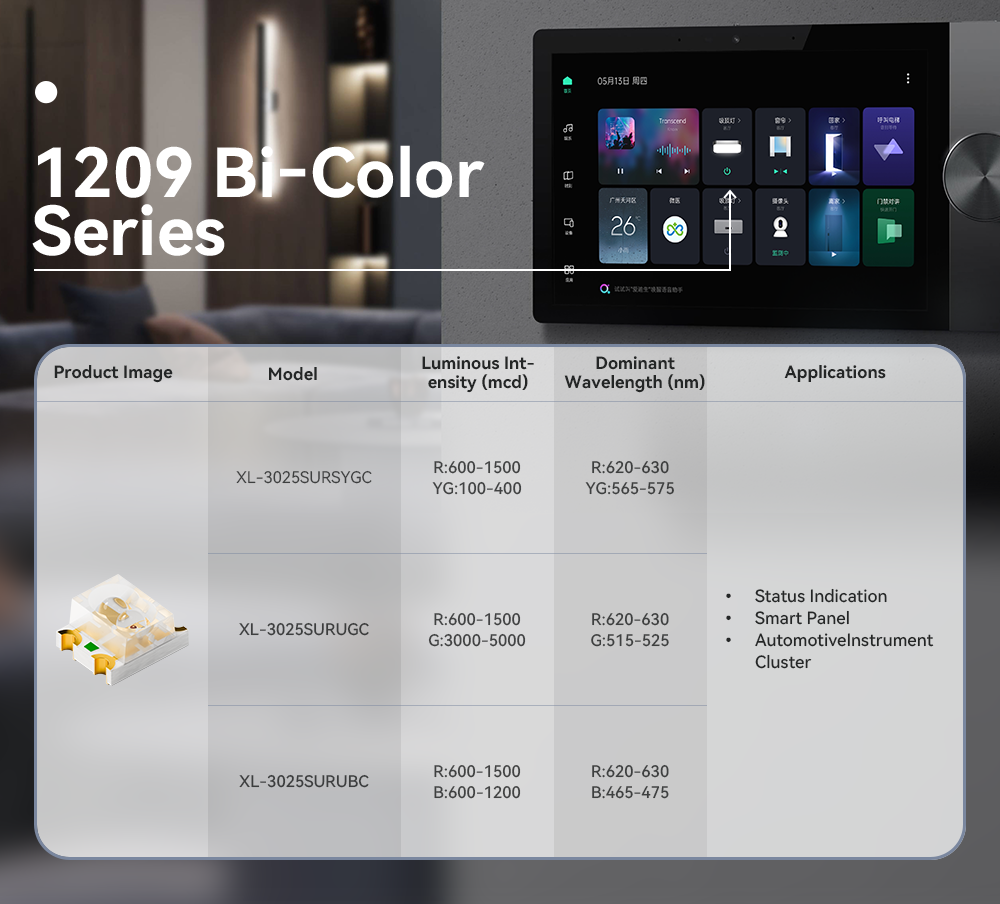

【5】1209 Dual‑Color Series – Two States, One LED

Housed in a 3.0×2.5×1.5mm package, this series integrates two independent chips that can be driven separately for dual‑color emission. The 60° viewing angle balances brightness and visibility. Red/green and red/blue combinations allow a single LED to convey binary states such as “normal/alarm,” “running/fault,” or “on/off”—saving PCB space and driver I/O pins.

Dual‑color LEDs are widely used in industrial controls, smart home panels, automotive dashboards, and home‑appliance indicators, delivering rich status information with minimal component count.

【6】3528 Dual‑Color Series (Common‑Cathode / Common‑Anode Versions)

Standard 3.5×2.8×1.9mm package with 1.9T thickness, clear epoxy resin, and two completely independent light‑emitting chips with electrical isolation—can be lit individually or mixed without interference. The 120° wide‑angle uniform emission ensures balanced visibility at medium distances both indoors and outdoors—neither too glaring nor too dim under ambient light.

This series fills the dual‑color indicator gap for medium‑to‑large panels and multilayer PCB equipment. Two pin‑out options—common‑cathode and common‑anode (‑FJ)—are offered, with three mainstream color combinations: red/emerald‑green, red/regular‑green, and red/blue. All share the same industrial wide‑temperature range and 2000V ESD protection. Ideal for long‑distance cabinet panels, photovoltaic inverters, charging piles, etc. The common‑anode version specifically addresses the risk of crossover shorts in multilayer PCB routing, making it the dedicated dual‑color solution for high‑power industrial controls and outdoor monitoring equipment.

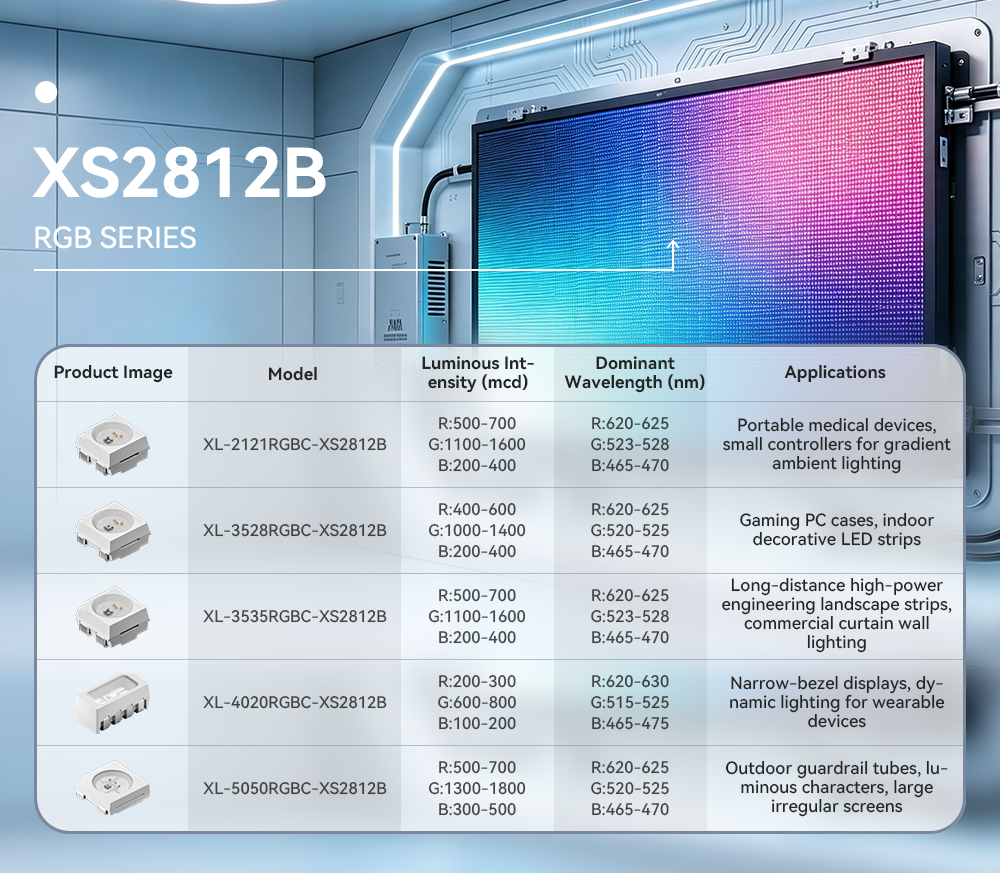

Built‑in XS2812B Magic RGB LEDs – Programmable Dynamic Full‑Color Lighting Solutions

For applications requiring gradients, flowing water effects, and custom animations—such as smart device ambient lighting, gaming LED strips, outdoor advertising, and creative shaped displays—XingLiang offers the built‑in XS2812B magic RGB product line. All models integrate the original XS2812B single‑bus constant‑current IC, requiring no external driver chip and simplifying MCU development. Five package sizes cover everything from miniature terminals to large‑scale architectural lighting.

Common hardware features for the entire magic RGB series:

1. Constant‑current control: RGB channels fixed at 12 mA output, intra‑chip current error <1.5%, inter‑LED brightness deviation <3%, ensuring uniform color across the entire string.

2. Communication: 800 Kbps single‑wire return‑to‑zero code transmission, with built‑in data reshaping and relaying—stable cascading of up to 1024 LEDs at 30 fps refresh. Uses 24‑bit GRB high‑bit‑first protocol with 80 µs low‑level reset.

3. Power supply: Wide voltage 3.5~5.5V, 100% stable down to 4.5V. A 0.1 µF bypass capacitor per LED is recommended, along with a 200~500 Ω series resistor on the signal line to prevent ESD damage from hot‑plugging.

4. Environmental tolerance: Operating temperature ‑40°C~+85°C; passed 1000‑hour room‑temperature continuous lighting and 85°C/85% RH high‑temperature/high‑humidity tests with zero failures. MSL 5 moisture sensitivity—unopened shelf life 3 months; after opening, must be reflow‑soldered within 24 hours, otherwise bake at 60°C for 24 hours before use.

Application Selection Guide – Which Model for Which Use Case?

【1】Medical Devices (endoscopes, pulse oximeters, patient monitors)

Recommended models:

0402 series (XL‑N1005 full‑color range)

0603 slim series (XL‑J1608xxx‑04)

• Medical devices demand extreme precision in size, reliability, and biocompatibility. Endoscopes and portable oximeters have extremely tight internal spaces—0402 ultra‑miniature packages are the first choice. All models are RoHS‑compliant and rated MSL 3, ensuring manufacturability in cleanroom production environments.

• For multi‑color status on device panels, the 0603 slim series (0.4T) delivers excellent brightness at just 0.4mm thickness, ideal for ultra‑thin enclosures.

【2】Automotive Electronics (instrument clusters, backlit switches, onboard controllers)

Recommended models:

0805 high‑brightness gold series (XL‑JY2012 series)

1206 dome‑lens series (XL‑JTD3216 series)

Automotive electronics impose some of the strictest reliability requirements on LEDs:

• Wide temperature cycling, vibration/shock, and long‑life expectations—every parameter is critical. The 0805 gold series uses gold‑frame construction for superior sulfur‑resistance, and the 1.1mm thickness provides adequate heat dissipation for long‑lit applications like dashboard backlighting and center‑console switch indicators.

• For long‑distance warning lights (e.g., fault indicators, seatbelt reminders), the 1206 dome‑lens series with 35° narrow angle and 600~1000 mcd intensity ensures clear visibility even under direct sunlight inside the cabin.

【3】Industrial Control (PLCs, servo drives, industrial power supplies)

Recommended models:

0603 standard series, 0805 gold series, 1209 dual‑color series, 3528 dual‑color series

Industrial control cabinets are among the densest indicator‑lamp environments:

• Power, run, fault, communication—a single board may carry dozens of LEDs. The 0603 standard series offers the best cost‑performance ratio with full‑color coverage and gold‑bonding process for industrial‑grade reliability.

• For binary states like “running/alarm,” a dual‑color LED (red/green or red/blue) replaces two single‑color LEDs, saving PCB space and driver channels.

• For long‑distance cabinet panels, photovoltaic inverters, charging piles, etc., the 3528 dual‑color industrial series is the recommended choice.

【4】Smart Home & White Goods (air conditioners, routers, control panels)

Recommended models:

0603 series (XL‑J1608 full‑color range)

Dual‑color series (XL‑3025 series)

• Smart home and appliance indicators must be “visible but not glaring.” The 0603 series with 120° wide angle and moderate brightness suits routers, set‑top boxes, air‑conditioner panels, washing‑machine panels, and more.

• For state changes like “standby/operating” or “online/offline,” dual‑color LEDs are the ideal choice—one component, two colors, allowing users to grasp equipment status at a glance, making product interaction more intuitive.

【5】Communications Equipment (base stations, switches, servers)

Recommended models:

0603 series, 0805 high‑brightness gold series, XS2812B magic RGB series

• Communication equipment runs 24/7, demanding the highest long‑term reliability. The 0805 gold series excels in heat dissipation and low lumen depreciation, perfect for continuously‑lit power and link‑status LEDs.

• High‑density boards (e.g., switch line cards) host numerous indicators—the 0603 series strikes the best balance between size and brightness, making it the mainstream choice for telecom.

• For rack‑level O&M interaction and server chassis status flow effects, the XS2812B magic RGB LEDs add dynamic multicolor cues to differentiate load, alarm, and offline states—easily identifiable from a distance in data centers. Their wide‑temperature tolerance suits both climate‑controlled server rooms and outdoor base‑station environments.

【6】Traffic Indication & Urban Lighting (guardrail tubes, landscape lighting, traffic points)

Recommended model:

1206 dome‑lens series (XL‑JTD3216 full‑color range)

• Traffic signals, outdoor signage, and urban lighting projects demand the highest brightness and longest visibility. The dome‑lens series with 35° narrow beam concentrates light for long‑distance recognition—600~1000 mcd ensures clear visibility. Full color availability (red, yellow, green, blue, orange, emerald green) covers all traffic and architectural‑lighting needs.

Industrial‑Grade Reliability – Every LED Rigorously Validated

1、Wide‑temperature operation: Entire series operates from ‑40°C to +85°C, with storage temperature equally covering that range. Whether in frigid outdoor base stations or high‑temperature factory floors, the LEDs remain stable.

2、High‑level ESD protection: All models withstand 2000V HBM (human‑body model) electrostatic discharge, effectively resisting static shocks and voltage surges in industrial settings—reducing damage during both manufacturing and field use.

3、MSL 3 moisture sensitivity: MSL 3 means components can remain on the production floor for up to 168 hours (7 days) after opening without baking, significantly improving SMT line efficiency and reducing popcorn‑effect risks during reflow.

4、RoHS compliance & eco‑friendly processes: Full compliance with RoHS directives—lead‑free, mercury‑free, cadmium‑free—meeting environmental regulations in the EU, US, and other markets to facilitate smooth certification.

5、SMT automation‑ready: All products come in EIA standard packaging, compatible with automated SMT placement and infrared reflow soldering (260°C/6s), supporting high‑speed pick‑and‑place machines and reflow ovens for assured mass‑production efficiency.

XINGLIGHT – Forging Reliable “Optical Signals” for Industry 4.0

In the wave of Industry 4.0, every single component is a building block of the smart‑manufacturing edifice. Indicator LEDs may be small, but they carry the critical mission of equipment‑status communication, safety alerts, and human‑machine interaction. A “dependable” indicator is the last line of defense for equipment reliability.

XINGLIGHT—with over 13 years of dedicated LED packaging—crafts every LED to industrial‑grade standards. From single‑color to full‑color programmable, from standard to high‑brightness, our 47 models cover the full spectrum of industrial indication needs, providing reliable “optical signals” to support Made‑in‑China and global manufacturing alike.
